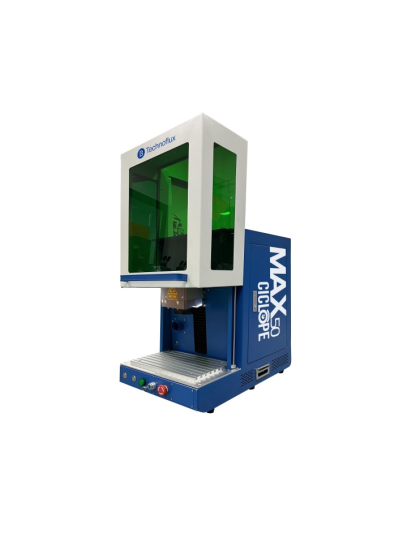

Technoflux Max 50W Ciclope Laser Engraving/Cutting Machine
TECHNOFLUX
11.495,00€
Technoflux's new MAX 50W CICLOPE laser engraving and cutting machine has been specially designed for jewelry and goldsmith workshops, both in terms of its size and its engraving and cutting applications.

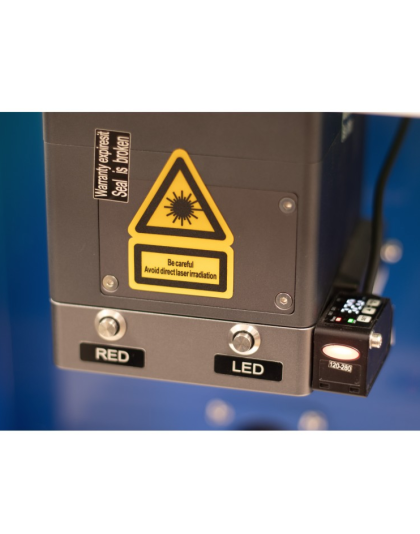

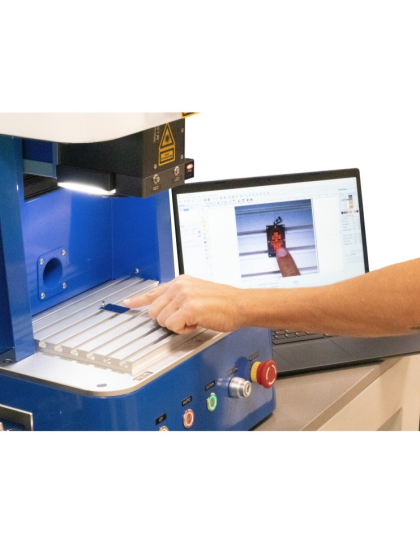

This new model is characterized by its advanced features, such as a laser head equipped with a CCD camera that allows us to view our work from the Ezcad2 program, the autofocus system that automatically regulates the distance required for each job via a sensor, a chassis with a triple viewing window, a motorized Z axis and an automatic safety stop system. In addition to the new EZCad2 software function.

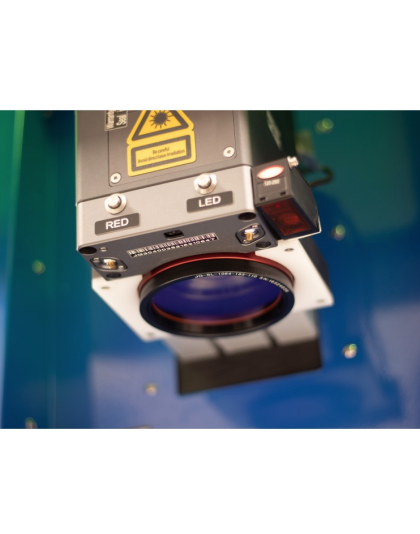

Equipped with high-quality optics and an Iterbio fiber optic laser source.
With 50 W of power, it can mark any metal object with elements such as logos, brands and texts with a variable marking area size (100 x 100 mm or 175 x 175 mm) depending on the interchangeable lens.
It cuts all types of metal up to a maximum thickness of 1.5 mm.
It can be equipped with the high-precision rotary axis system, which allows rotary and circular engravings to be made with a movable ring and clamping jaws for the X and Y axes.
It works with a program specially designed for its use (Ezcad2) which allows us to import files from today's most popular computer drawing programs (svg, dxf, bmp, plt, jpg, dwg, etc.).
INCLUDES: USB Ezcad2, USB cable, external PC connection, power cable and foot switch.
ACCESSORIES : Vacuum cleaner (Ref. CRA099), universal tweezers (Ref. CRA100), rotating tweezers (Ref. CRA101), interchangeable lens for the 175 mm engraving zone (Ref. CRA) and eye protection goggles approved for class IV lasers (Ref. CRA103).
Characteristics:
Integrated CCD camera for Ezcad2
Motorized Z axis
Automatic safety system
Dimensions: 420 x 625 x 650 mm
Working area: 225 x 350 mm
Maximum marking area: 175 x 175 mm (varies according to version)
Weight: 52 kg
Voltage: 220 50/60 Hz
Phases: 1
Power output: 500 W
Maximum energy: 1.25 mJ
Wavelength: 1064 nm
External PC connection
* 2-year warranty
